Laboratory Constant Infrared Radiation Walk in Temperature (&Humidity) Chamber
Temperature and Humidity Test Chamber Basic introduction:
Environmental test chamberr/constant temperature and humidity chamber simulating product under the condition of temperature and humidity combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself have changed.
Need to meet the requirements of international standard (IEC, JIS, GB, MIL...). in order to achieve International quantum measurement procedures consistency (including test steps, conditions, methods). To avoid different cognitive, and reduce uncertainly factors scope of measurement.
Six advantages of Sanwood Temperature and Humidity Test Chamber:
1.Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95℃ 95%high temperature and high humidity environment.
5.10% 20 ℃ ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.
Temperature and Humidity Test Chamber Specification:
| Model | SMC-160-CC-WT | SMC-250-CC-WT | SMC-340-CC-WT | SMC-400-CC-WT |
| Temperature | Temperature control range | -65℃～80℃(+15℃)(A:0℃～80℃;B:-20℃～80℃；C:-40℃～80℃;D:-65℃～80℃) |
| Temperature fluctuation | ±0.5℃ |
| Cooling rate | 80.0℃～-65.0℃ Within 110 mins 1.0～2.0℃/min |
| Heating rate | -65.0℃～80.0℃ Within 70 mins 2.0～5.0℃/min |
| Temperature uniformity | ±2.0℃ (-40.0℃～80.0℃) |
| ±2.5℃ (-40.0℃～-65.0℃) |
| Humidity | Humidity control range | 20.0%RH～95.0%RH |
| Humidity fluctuation | ±1.5% RH |
| Humidity uniformity | ±3.0％RH |
Material /
components | Internal material | Stainless steel(SUS304) |
| External material | Cold rolled steel sheet / powder spraying |
| Heat insulating material | 100mm thickness polyurethane plate＋10mm thickness mineral wool |
| Fan | Centrifugal blower |
| Compressor | Semi-closed Germany Bock, Germany Bitzer |
| Condenser | Water-cooled |
| Refrigerant | R404A,R23,R508 |
| Evaporator | Fin - and - Tube Heat Exchanger |
| Heater | Nickel chromium alloy heating wire |
| Humidifier | Steam humidifier |
| Size | Interior size(mm)
W*H*D | 4070*2100*1970 | 3020*2100*4070 | 4070*2100*4070 | 5120*2100*4070 |
Outer size(mm)
W*H*D | 4270*2350*3500 | 4650*2350*4270 | 5720*2350*4270 | 5320*2350*6150 |
| Volume(m³) | 16.0m³ | 25.0m³ | 34.0m³ | 40.0m³ |
| Operating ambient temperature | +5 ~ 35℃ |
| Power supply | 380V AC 50/60Hz |
| Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700 |
Product Tags:
|
|

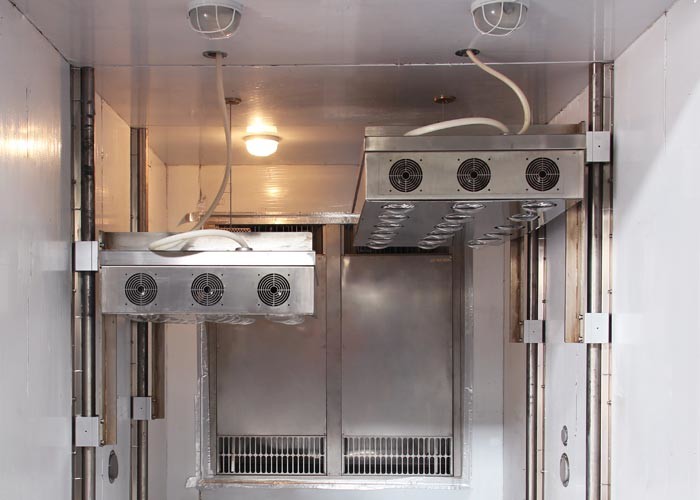

Constant Infrared Radiation Temperature Humidity Test Chamber For Laboratory Images
|
